Ortho TAD Solutions

$17$250

Сategory: Orthodontics

Description

IDL TAD implant systems offer fixed anchorage to assist with the efficiency of your treatment.

This is useful when you encounter the need for space closure, tooth uprighting, open bite correction, molar distalization, and a number of other applications. IDL Miniscrew’s self-drill spiral body made from the same 6Al-4V Eli grade 5 titanium like all IDL implants. Each is supplied in the individual sterile pouch. All tips fit both the driver handle or contra-angle. Designed with orthodontic use in mind, IDL Miniscrew is a coordinated system of mini implants and instruments that provide clinicians with all the benefits of temporary anchorage.

Advantages:

  • Reduced anchorage demand for more control.
  • Surgery cases treated without surgery.
  • Designed to conserve teeth, avoiding extractions.
  • No headgear and reduced reliance on patient compliance.
  • Reduced treatment time.
  • Well tolerated by the patients.
  • IDL Miniscrew’s self-drill spiral body made from the same 6Al-4V Eli grade 5 titanium like all IDL implants. Each is supplied in the individual multi-layered sterile pouch.

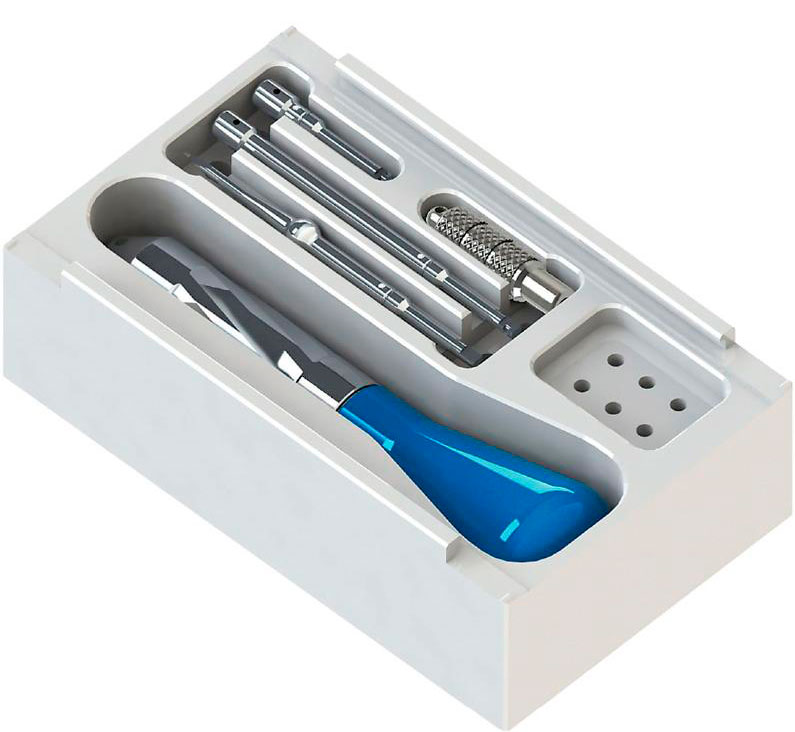

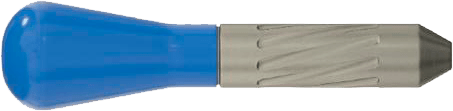

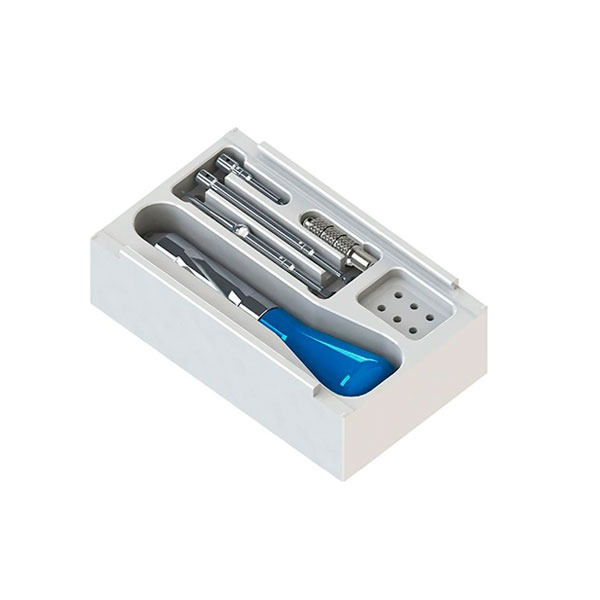

Orthodontic Mini Screw Implant Tools Kit

Content Code
DMS20010
DMS20011
DMS20012
DMS20013
DMS20014
FULL KIT IN AUTOCLAVABLE BOX DMS20001

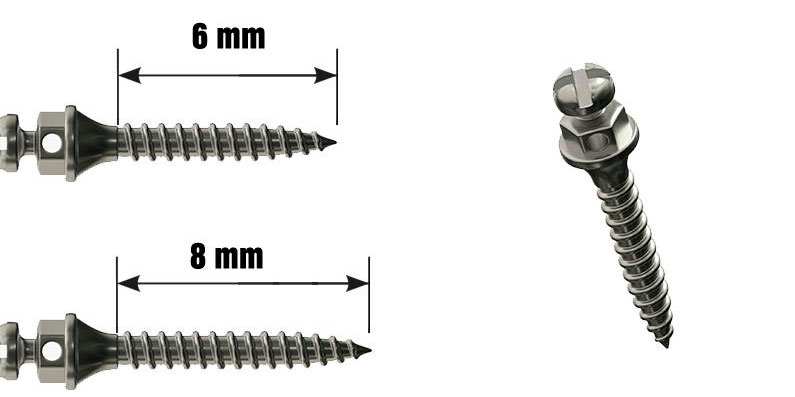

Cross-head Screw Ø 1.5 mm

Transmucosal Margin, mm Blade lenght, mm Code
1.0 mm 6.0 mm DMS10241
2.0 mm 8.0 mm DMS10242

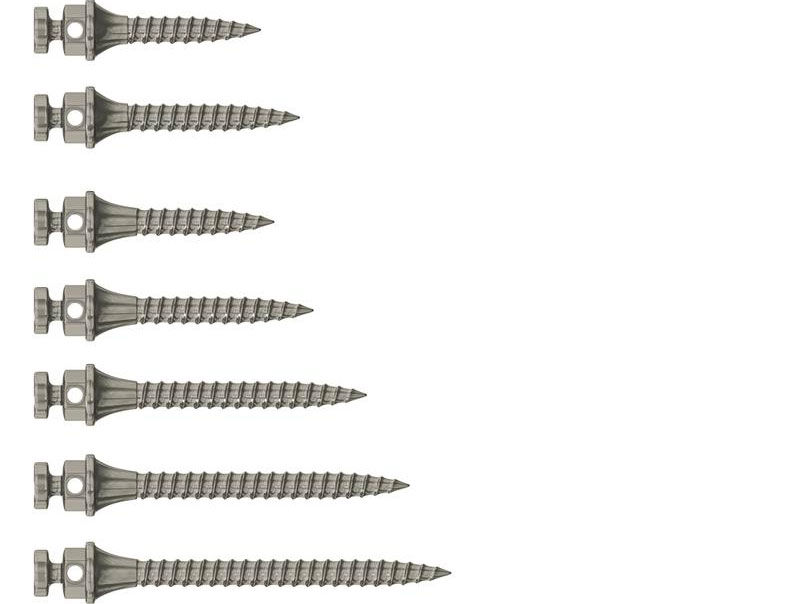

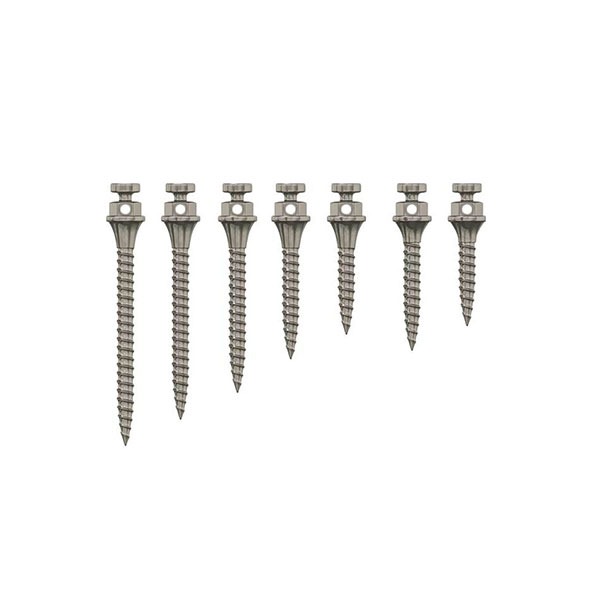

IDL Mini Screw Ø 1.5 mm

Transmucosal Margin, mm Blade lenght, mm Code
1.0 mm 6.0 mm DMS10101
1.0 mm 8.0 mm DMS10102
2.0 mm 6.0 mm DMS10201
2.0 mm 8.0 mm DMS10202
2.0 mm 10.0 mm DMS10203
2.0 mm 12.0 mm DMS10204
2.0 mm 14.0 mm DMS10205

Buccal Shelf Screw Ø 2.0 mm

Transmucosal Margin, mm Blade lenght, mm Code
4.0 mm 10.0 mm DMS2014
4.0 mm 12.0 mm DMS2016

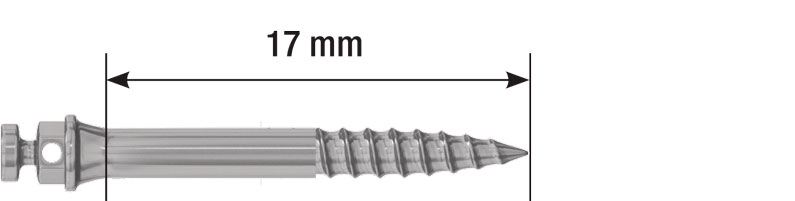

Zygomatic Bone Screw Ø 2.0 mm

Transmucosal Margin, mm Blade lenght, mm Code
8.0 mm 9.0 mm DMS1017
